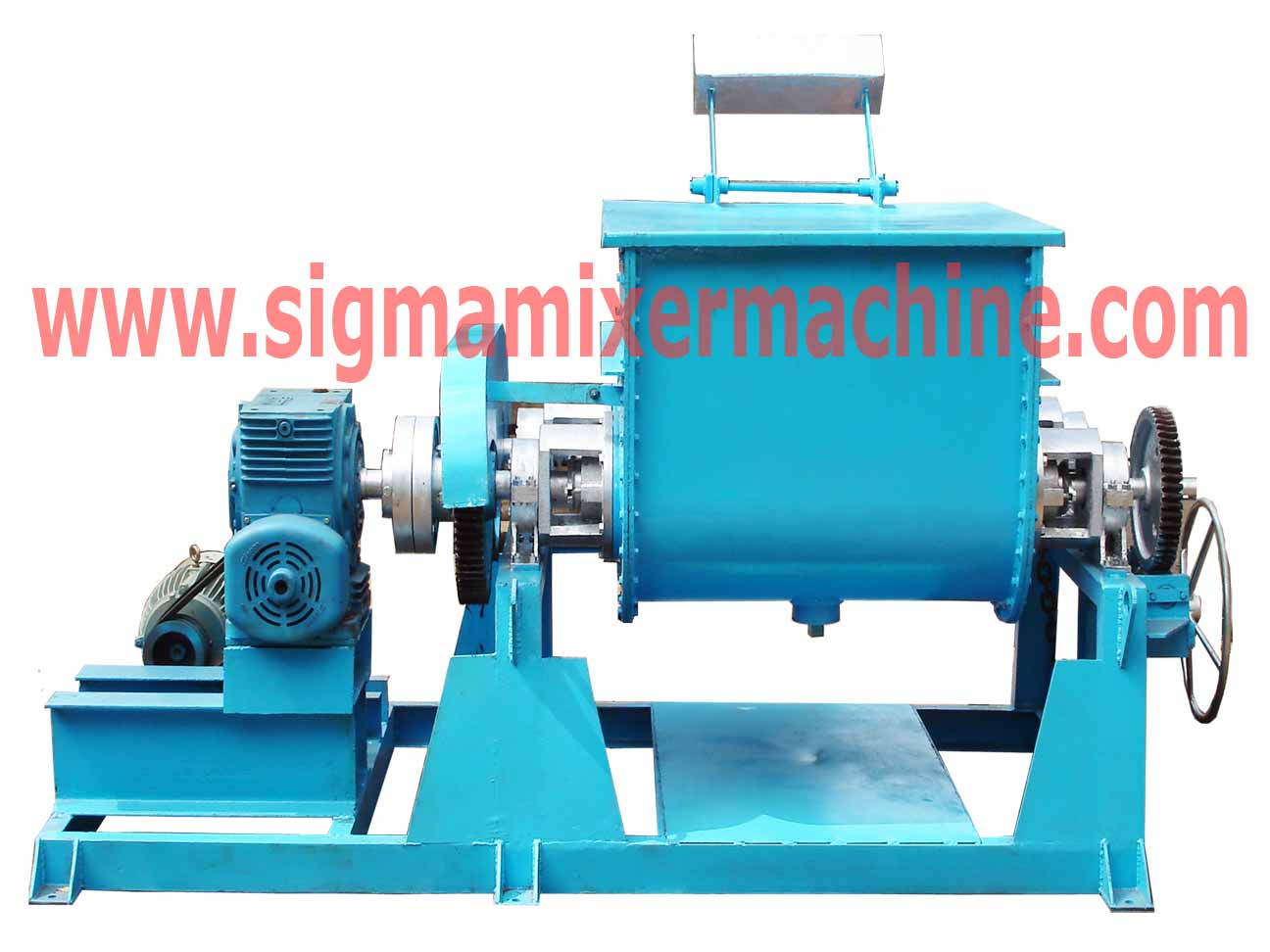

SIGMA KNEADER


This machine comprises of a double 'U' shaped container welded and machined together inside which rotates two 'Z' shaped sigma blades in opposite directions. The clearances between the walls and the container are kept to a minimum to ensure maximum effciency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/teflon rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.

These types of machines are available in M.S. And S.S.contruction. The kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 250 Kgs we provided hydraulic tilting.

Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.

Specifications

Models
ABFSK 6
ABFSK 25
ABFSK 50
ABFS 125
ABFSK 250
ABFSK 350
ABFSK 500
Vol. Cap in Lts.
6
25
50
125
250
350
500
Motor H.P.
1
3
5
10
20
30
40
Hydraulic H.P.




1.5
1.5
1.5
Tilting
Manual
Manual
Manual
Manual
Hydraulic
Hydraulic
Hydraulic

Range of Products
 * Triple Roll Mills * Ribbon Blenders
 * Hydraulic Dissolvers  * Pug Mixers
 * High Speed Mixers  * Planetary Mixers
 * Batch type Sigma Mixer Machines  * Conical Blenders
 * Continuous Sigma Mixer Machine  * Resin Plants
 * Bead Mills  * Turnkey Projects
  Applications
 * Varnishes & Paints  * Resins, Glues, Adhesives
 * Polyurethanes  * Pharmaceuticals
 * Inks  * Chemicals
 * Foods  * Lacquers
 * Colourants  * Cosmetics
